Shape_Shift

Digital Thesis Exhibit

ITECH 2025

↑↓

CINTHIA

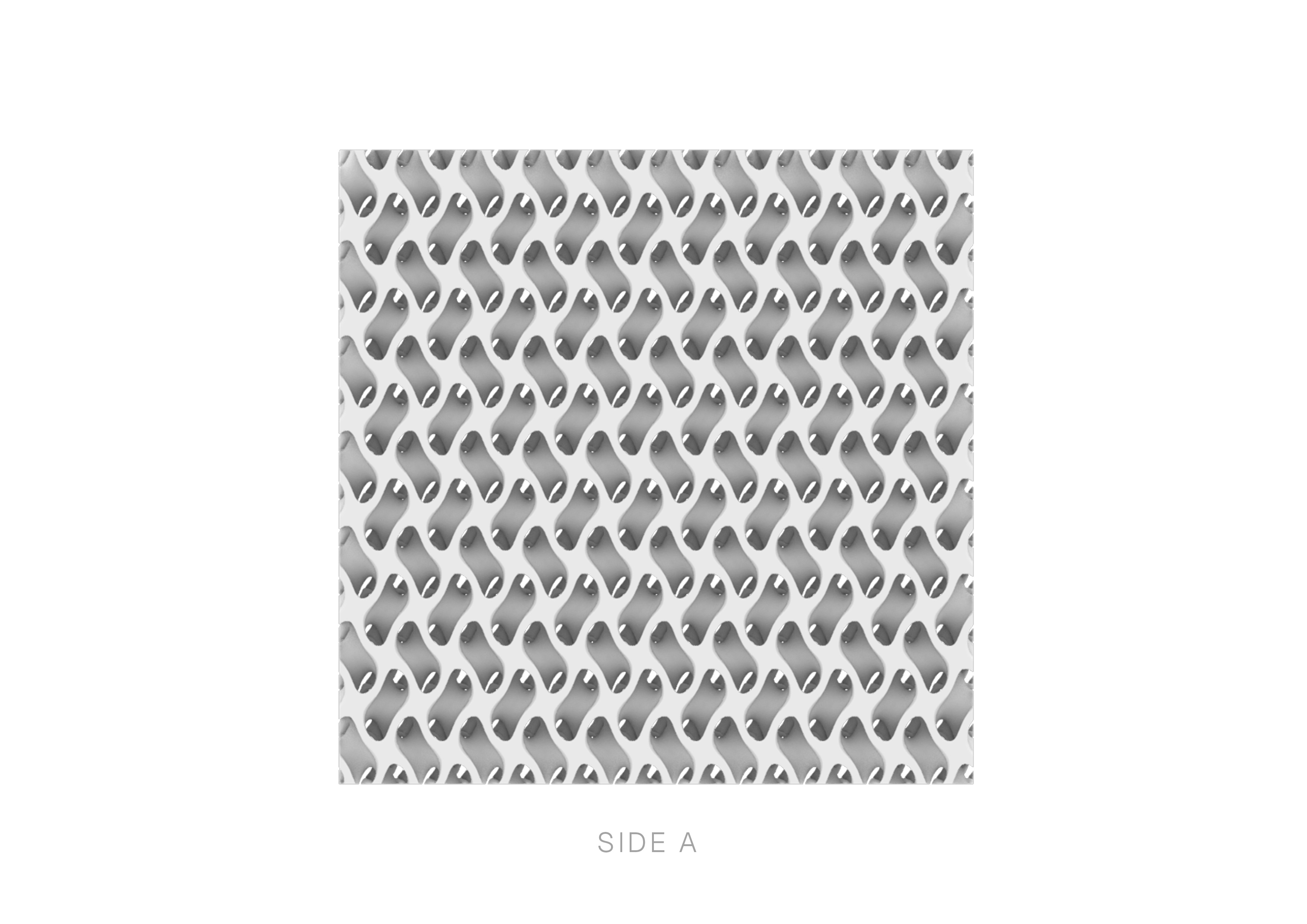

ACTIVE GEOMETRY

cell size | R: 5mm, A: 10mm

sectional geometries | R: 1/2 period HV, A: 1 period NH

regional aspect ratio | 1:3

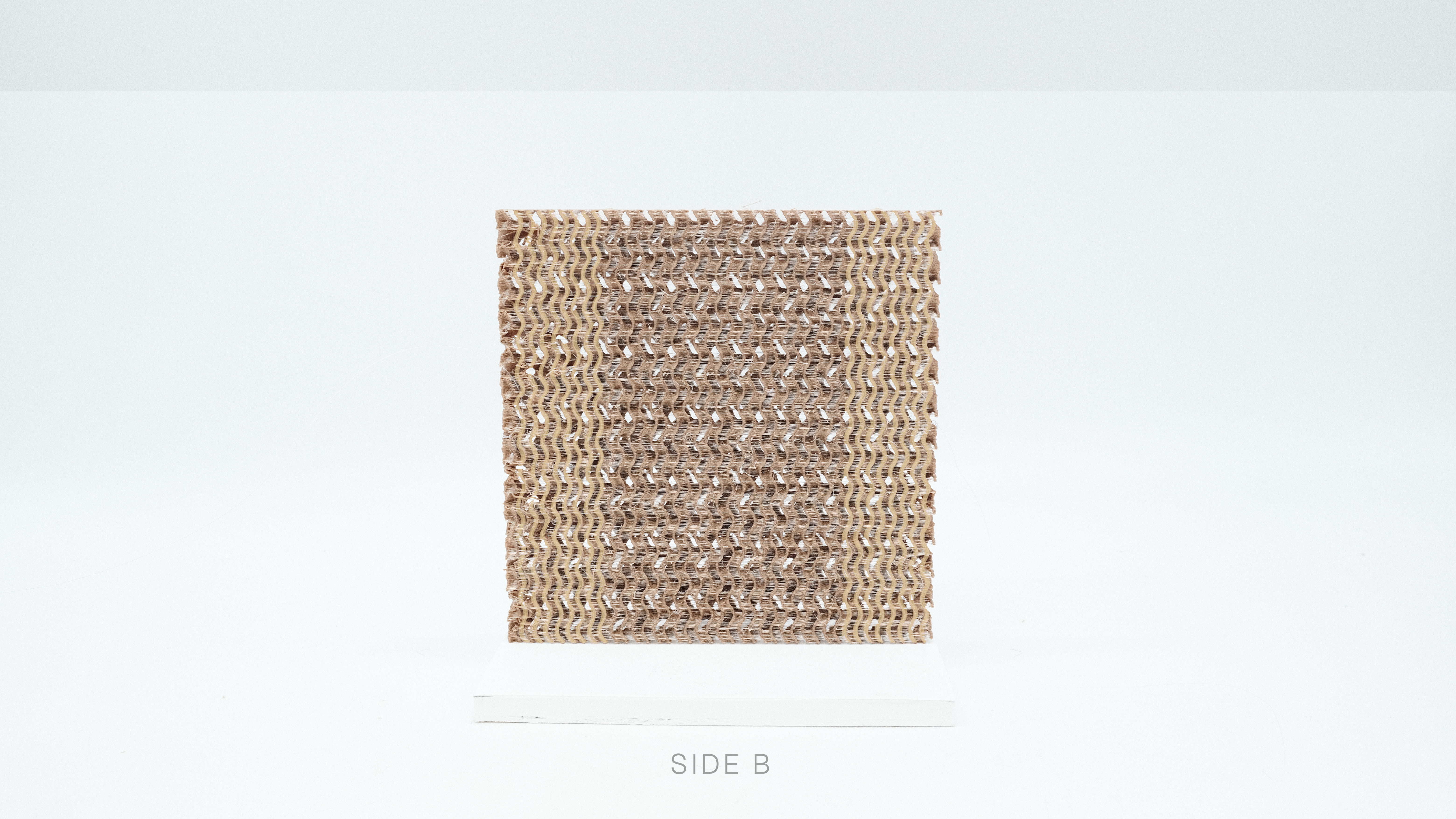

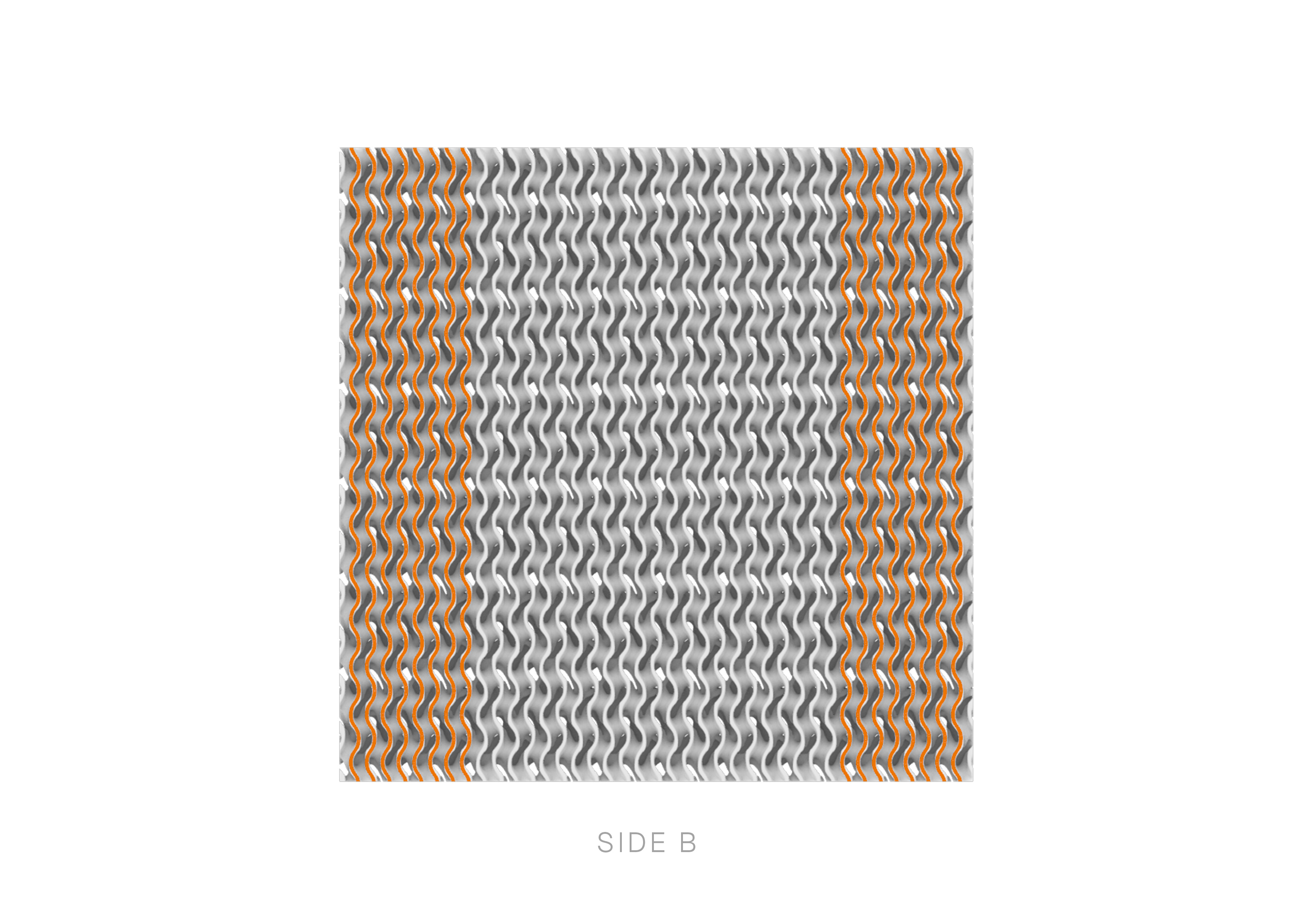

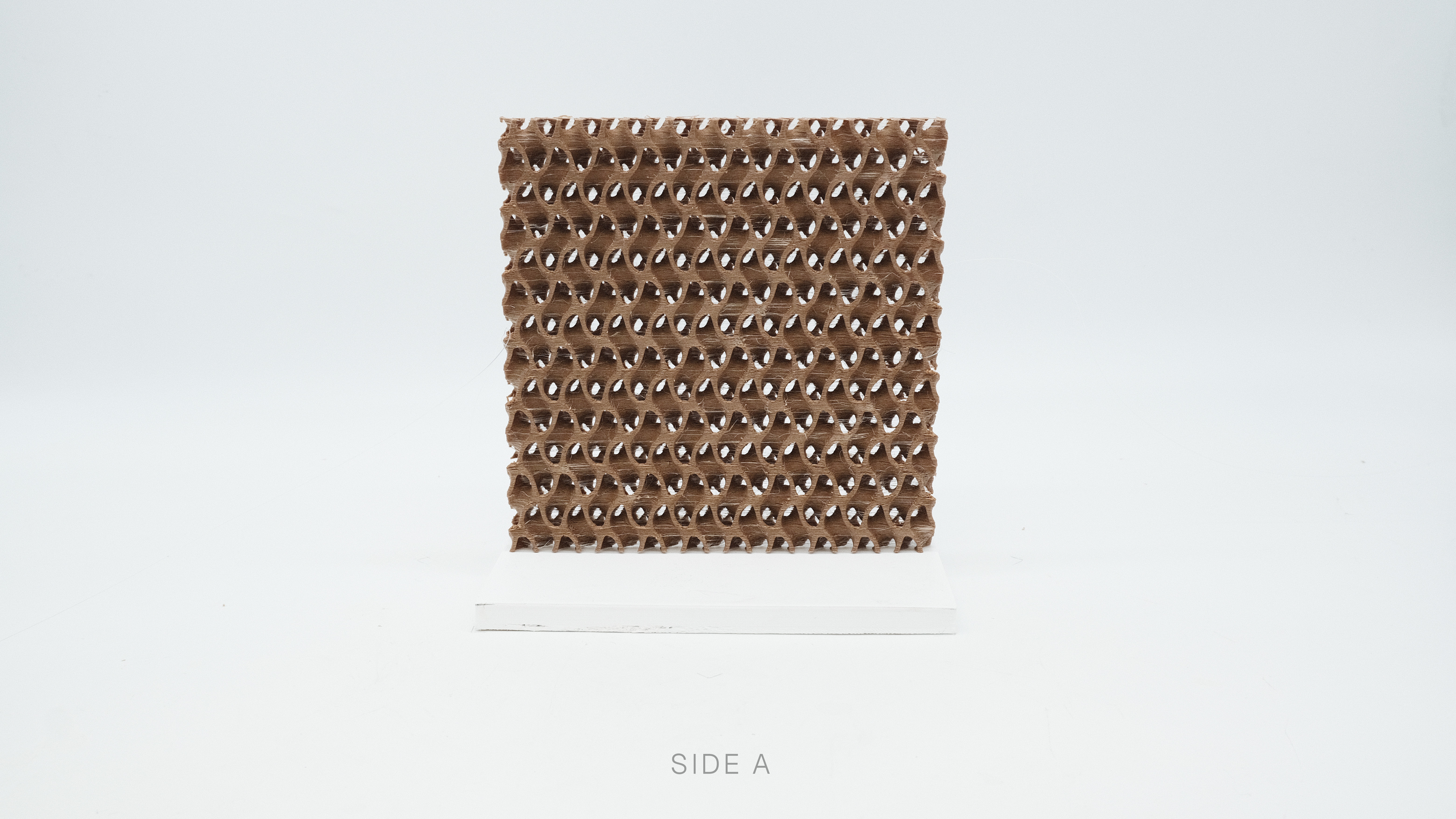

RESTRICTIVE GEOMETRY

pattern | active edges on restrictive geometry (8 lines x 2), 40% coverage

no. layers | 4x8 - 0x24 - 4x8

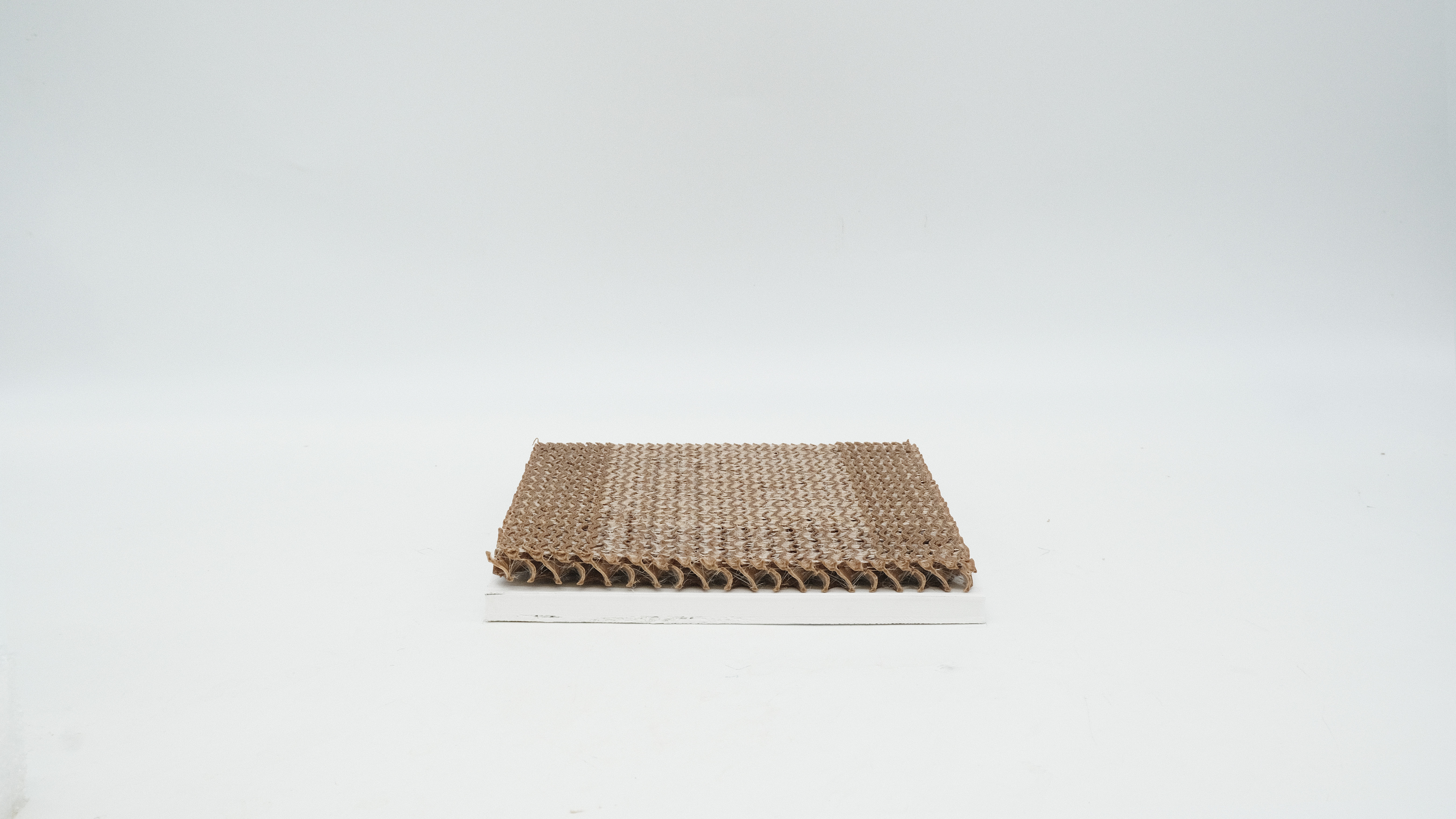

PRINTING

nozzle temperature | 200C

layer height, width | 0.2mm, 0.62 mm

printing method | cross sectional + multi-step

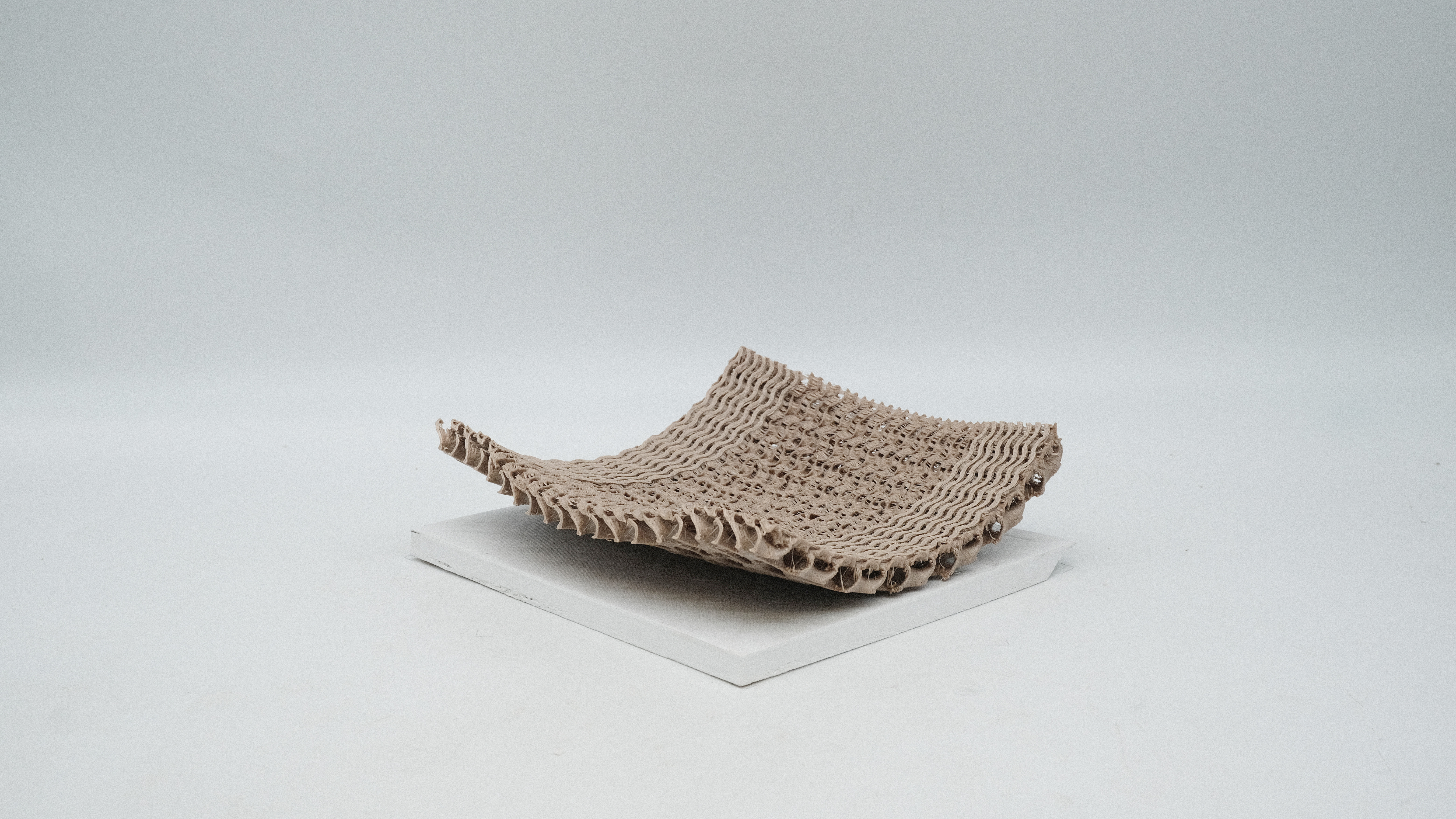

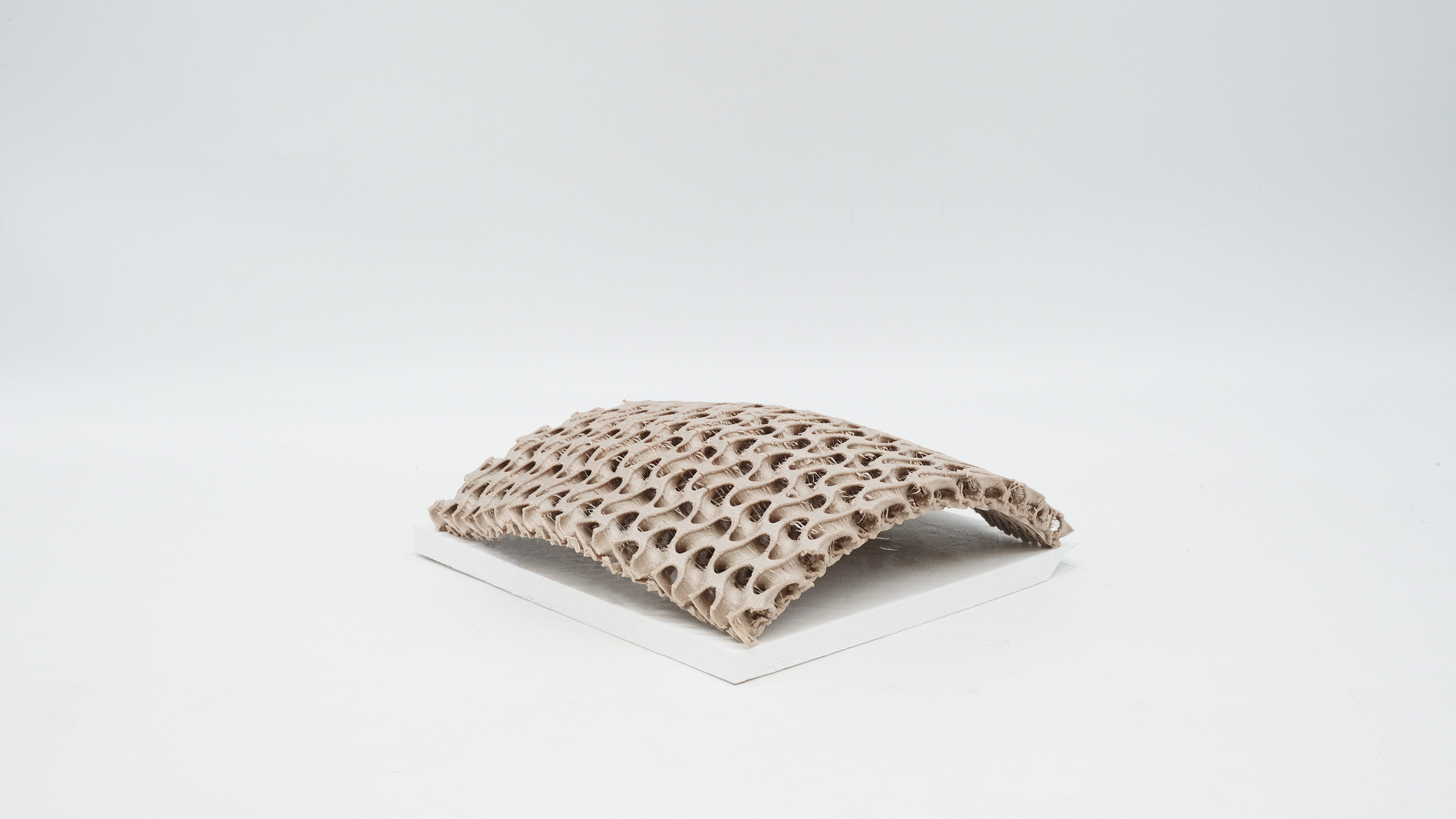

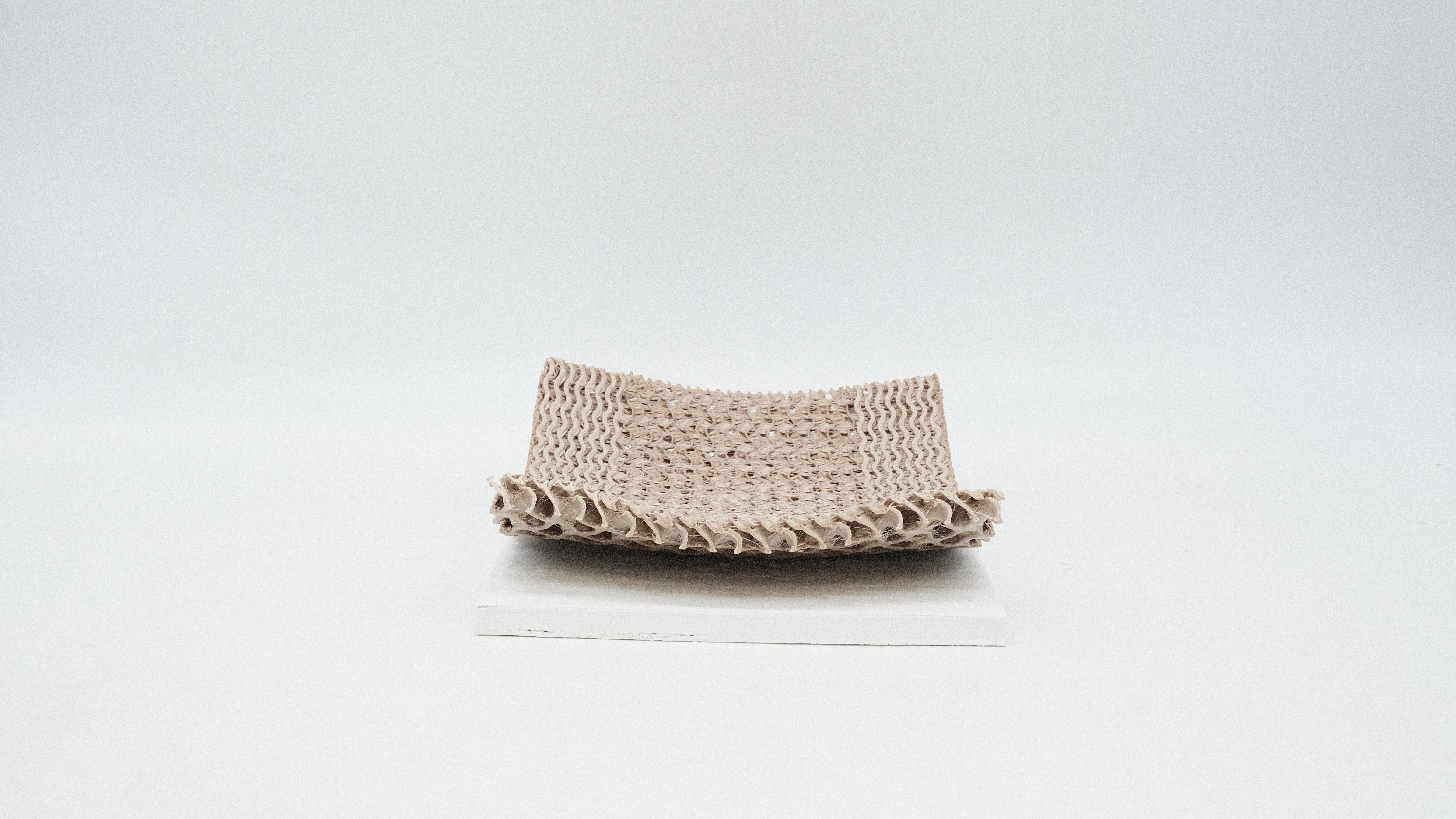

ACTUATION

submergence | 2 hours

geometry | synclastic

printed mass | 130 g

bending radius | +242mm, +138mm

bending curvature | +0.004 mm-1. +0.007 mm-1

← Back to Gallery

Swipe to reveal

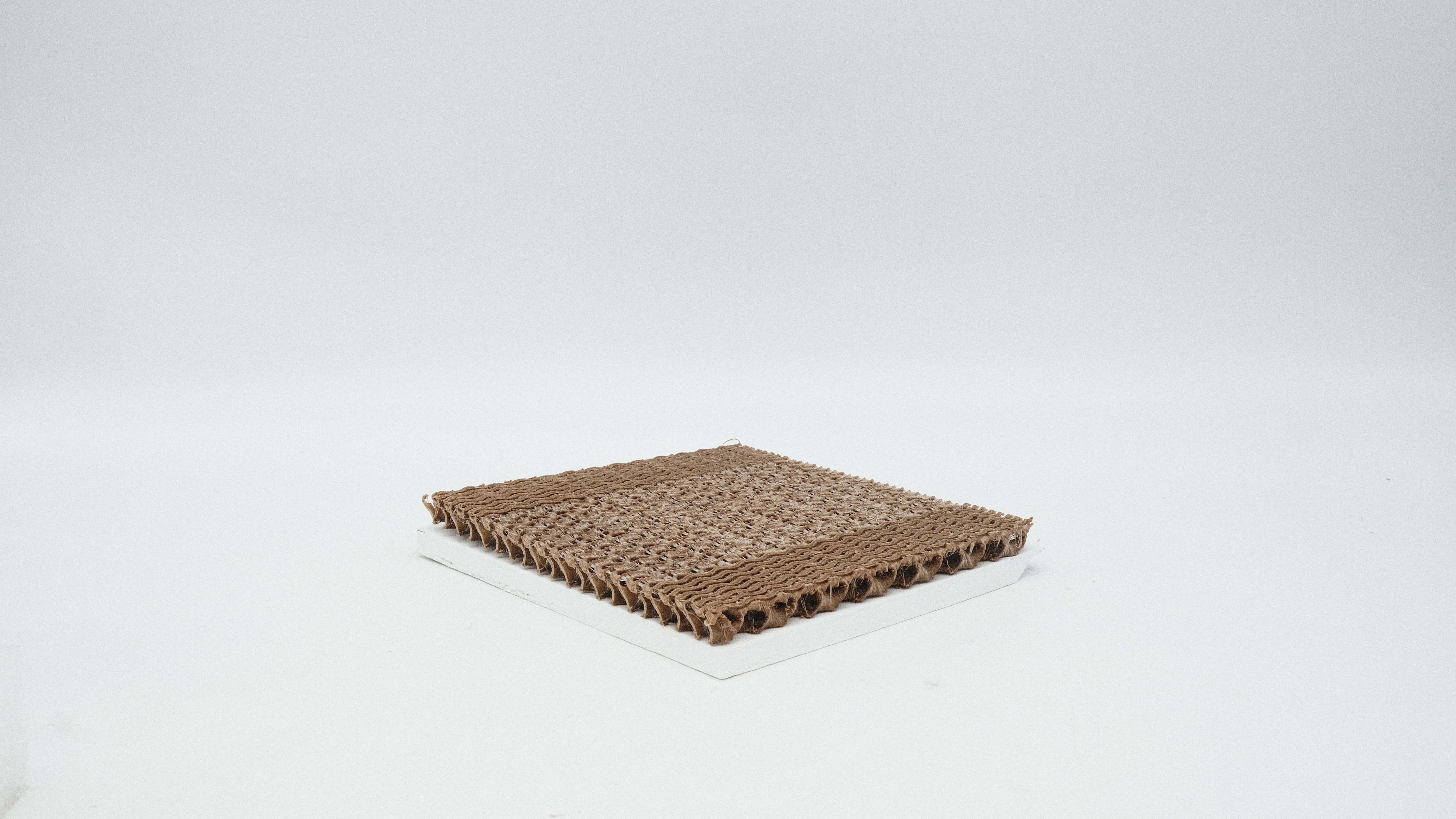

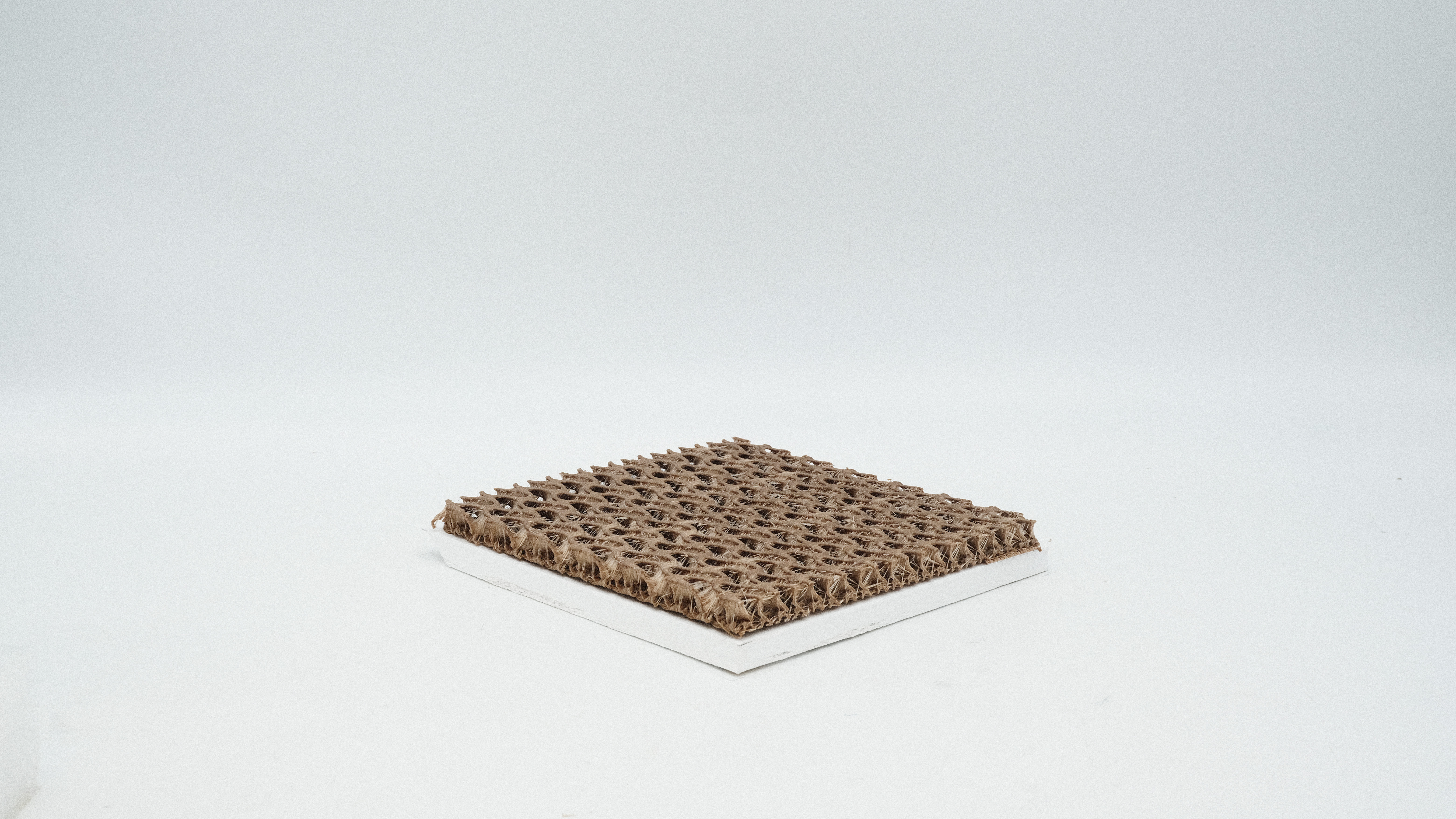

PrintedActuated

Fabrication

Design of Restrictive Geometry

Shape Change

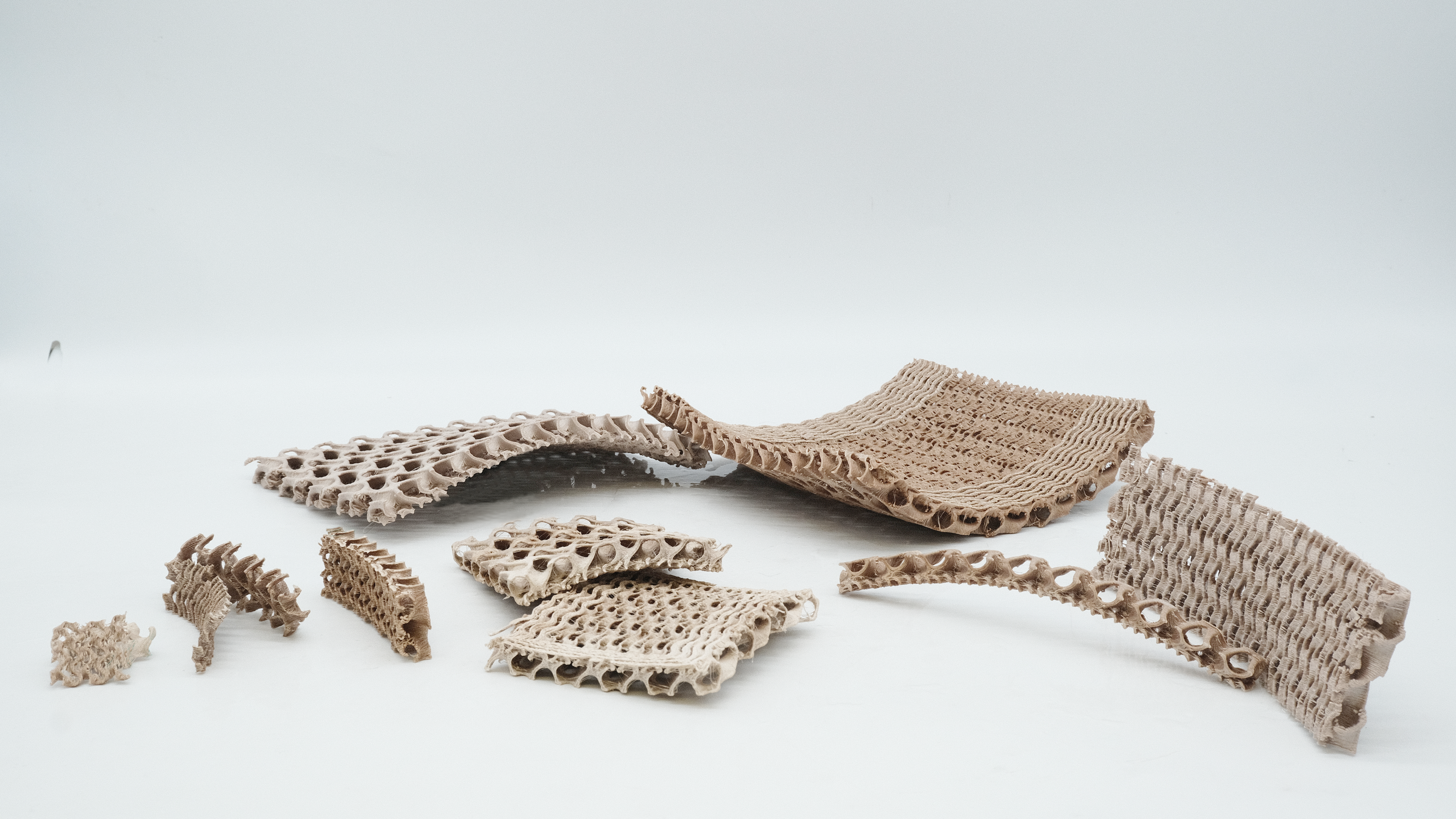

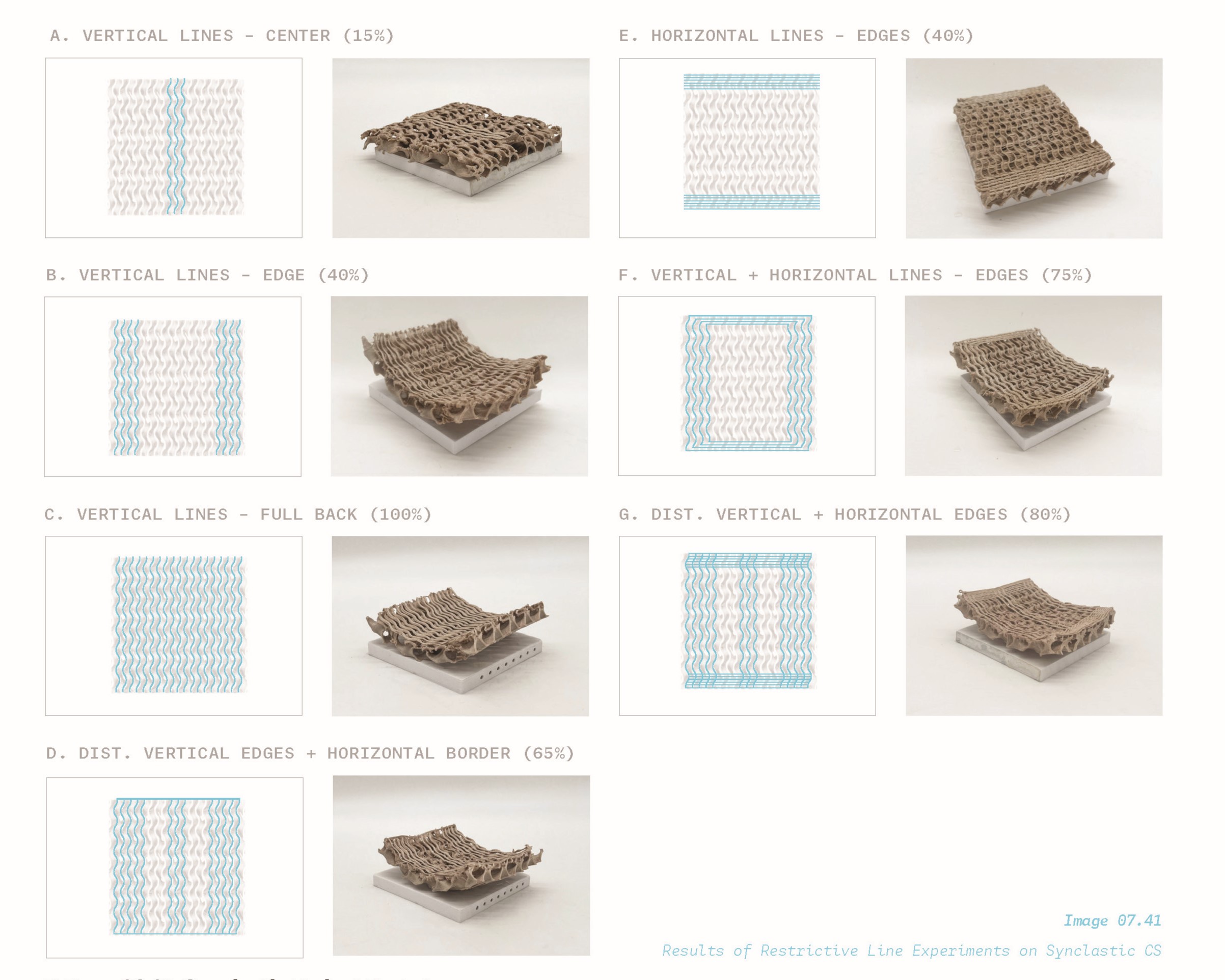

Studies
